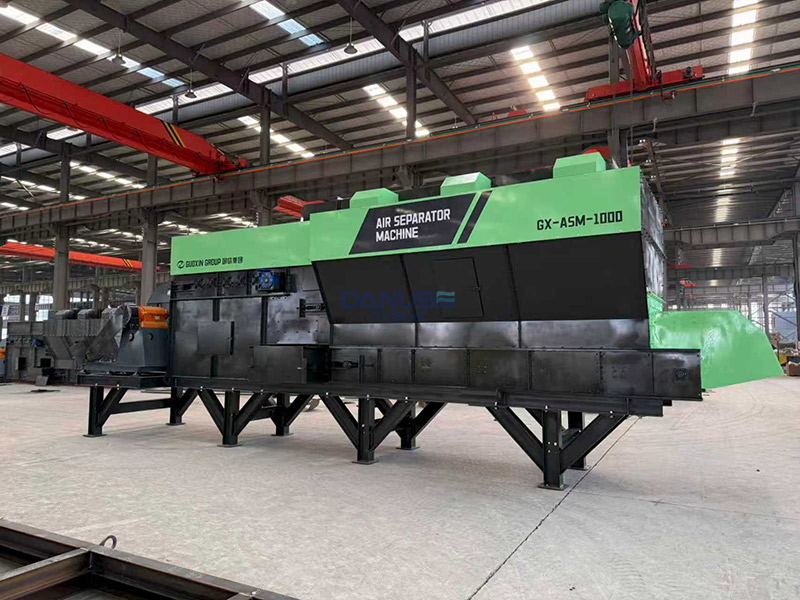

Waste Air Sorting Machine Introduction
Air Separator Usage in Waste Sorting Line
Danube air sorting machine is a large waste sorting facility for waste sorting processing. For the most of time, it is an important step for wastes treatment.
After the garbage separation machine, we use a waste air sorting machine to make more accurate separation:
☞ The system uses the force of gravity combined with the wind to sort the waste
☞ The injection pressure and air volume of the blower are adjustable, and depending on the purpose of separation, the sorting efficiency and purity can be optimized to separate glass bottles, plastics, cans, film, and paper.
☞ The cyclone separation process can absorb and contend with the polluted air, improve the working environment, reduce air pollution.
☞ The air separator is installed in front of the MRF(waste recycling plant) or MBT(biomechanical treatment) automatic sorter to sort film, paper, and dust to achieve the efficiency and purity of the automatic sorter.
Air Sorting Machine Advantages:
1. Separate materials with various gravity air volumes to effectively separate heavy waste (glass);
2. Improve the working environment through wind dust removal and air circulation;
3. Good cyclone system can effectively screen plastic film, paper and dust.
Waste Air Sorting Machine Separation Effect:
After the ventilation system, the heavy material and light material can be separated.
• Heavy matter: refers to heavy, large matter, such as copper, iron and other metals and stones, glass, ceramics, lumps of wood, and other non-metals;
• Light-matter: refers to light, a small matter, such as film, waste paper, and other light non-metallic miscellaneous materials;
• Garbage, wood, stone, glass, plastic, and other light materials;
• Construction and decoration waste;
• Stale domestic garbage.
Parameters of Two-stage Air Sorting System
|
Model
|
Capacity (t/h)
|
Power(kw)
|
The Details of Power (kw)
|
|
DB-A600
|
20
|
26.7
|
7.5+5.5+5.5+3+3+2.2
|
|
DB-A800
|
40
|
37 |
11+7.5+7.5+4+4+3
|
| DB-A1000 |
60
|
44
|
15+7.5+7.5+5.5+5.5+3
|
| DB-A1200 |
80
|
55.5
|
18.5+11+11+5.5+5.5+4
|
|
DB-A1400
|
100
|
59 |
22+11+11+5.5+5.5+4 |
|
DB-A1600
|
120
|
79 |
30+15+15+7.5+7.5+4
|
